Small Electric Motor Dynamometer
The purpose of the dynamometer is to measure the power output of an electric motor using a measured torque value and angular velocity(RPM). The torque value is measured using a binocular-shape bending-beam load cell. Its purpose is to measure the force acted upon it by the reacting force of the magnetic particle brake connected to the torque arm. Using the known length between the load cell and the shaft of the brake, we can calculate torque. Hence, we can calculate power with a given RPM.

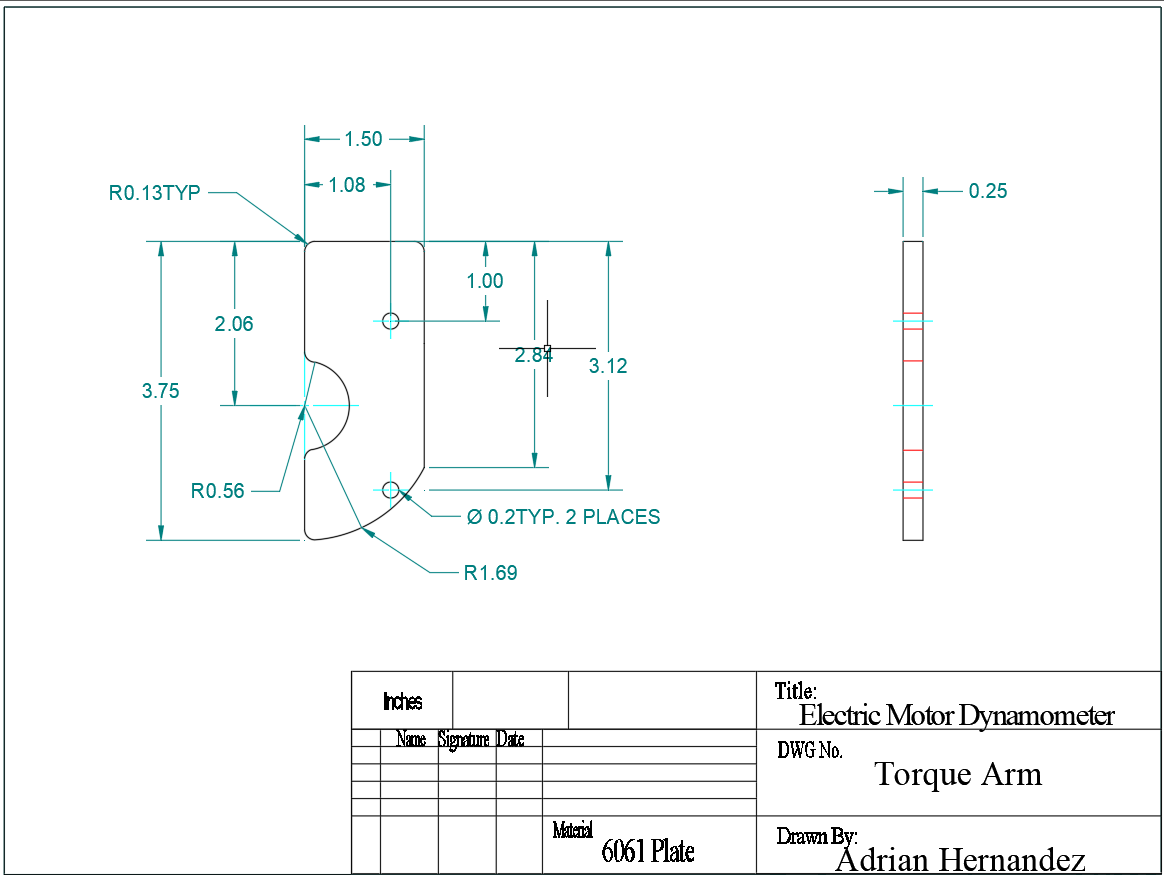

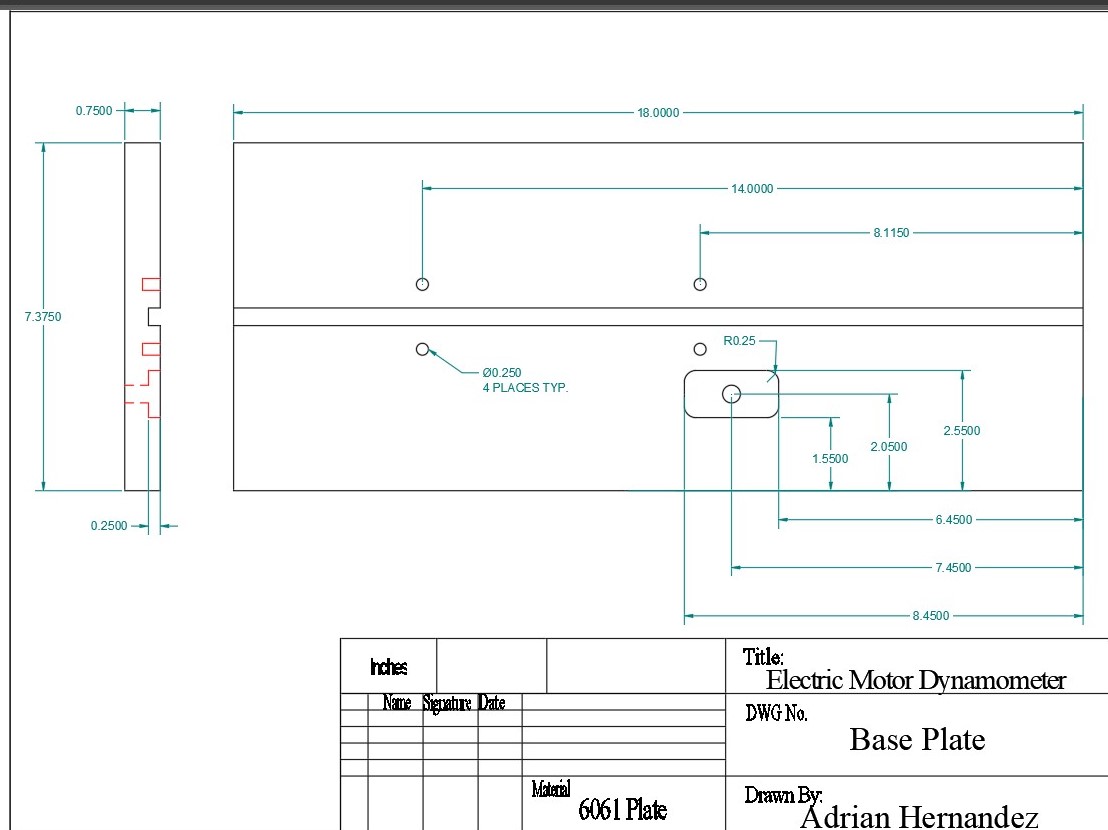

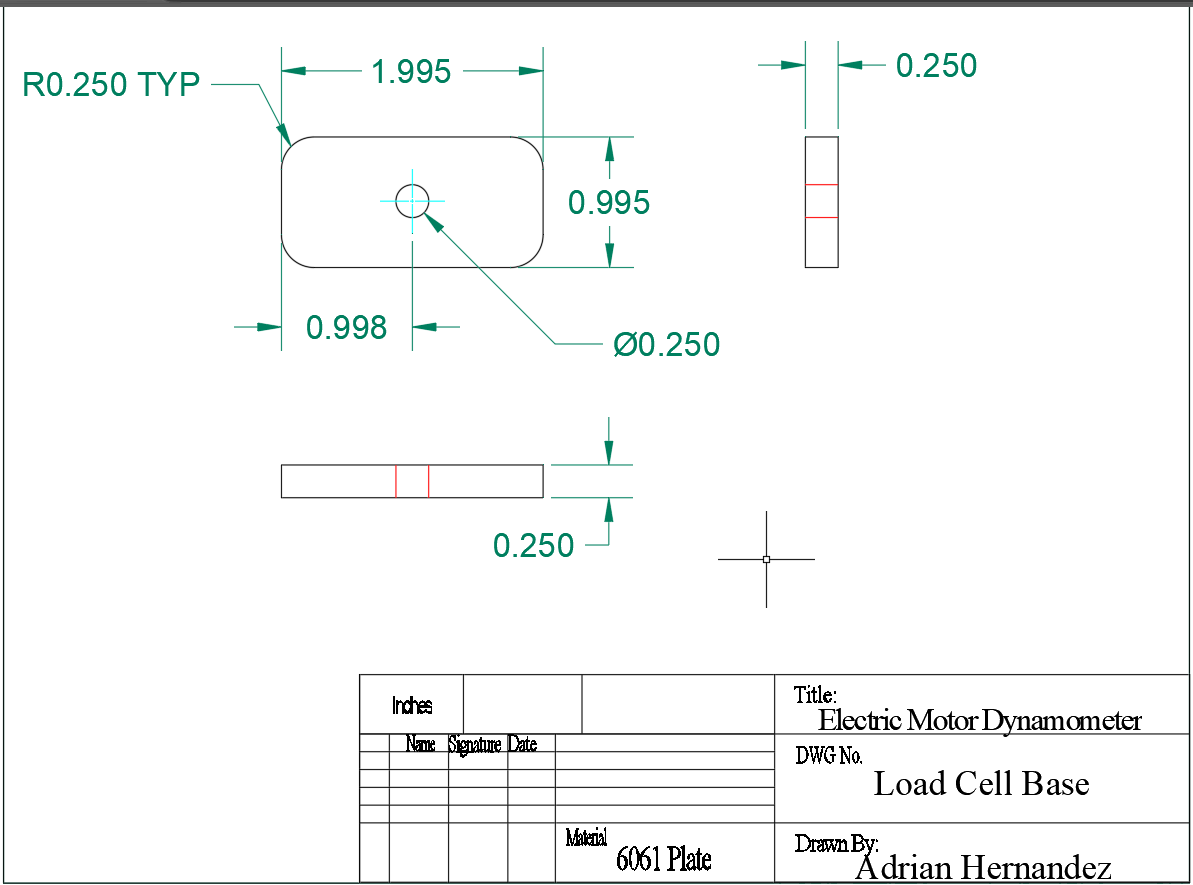

CAD Drawings

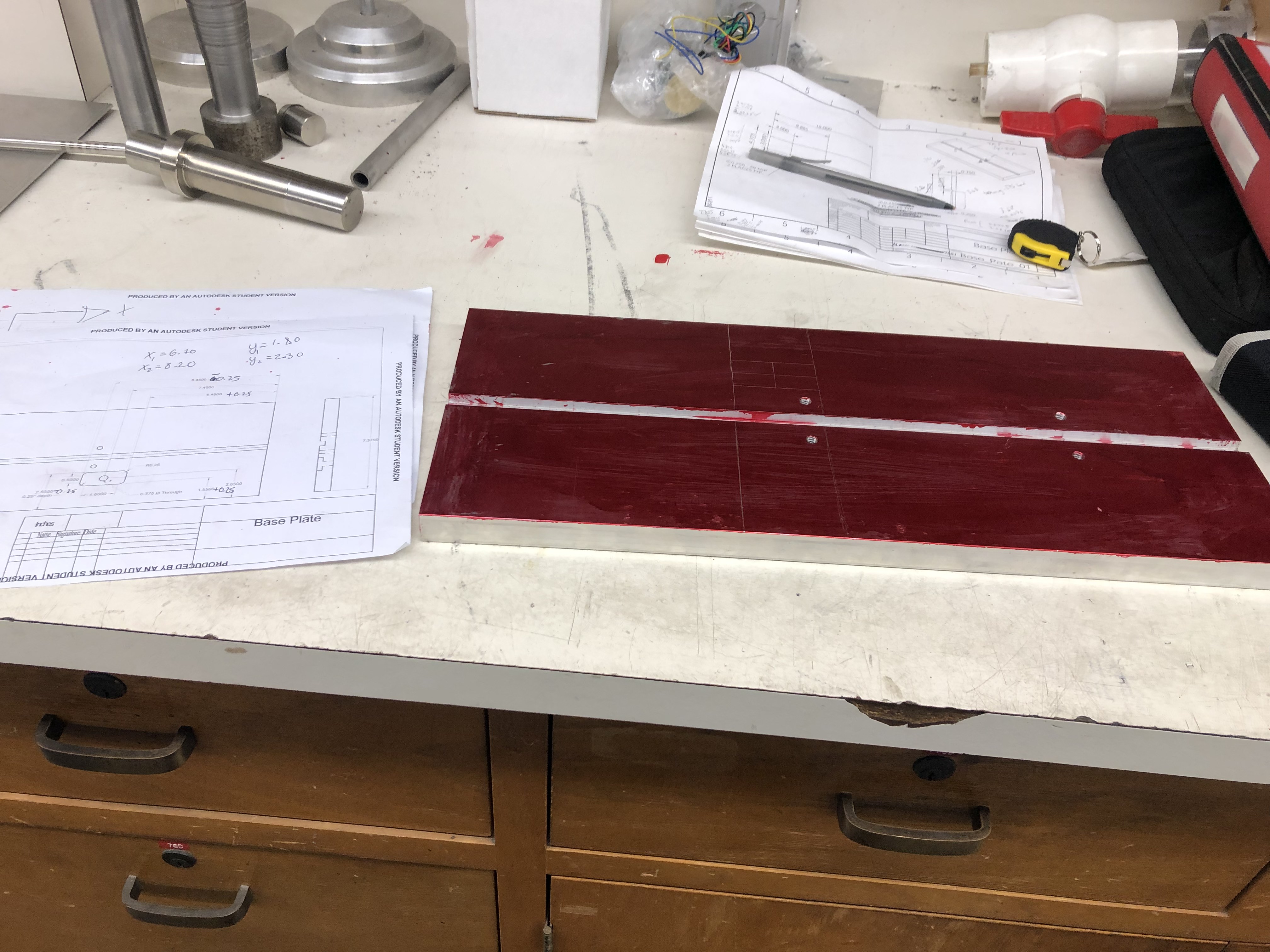

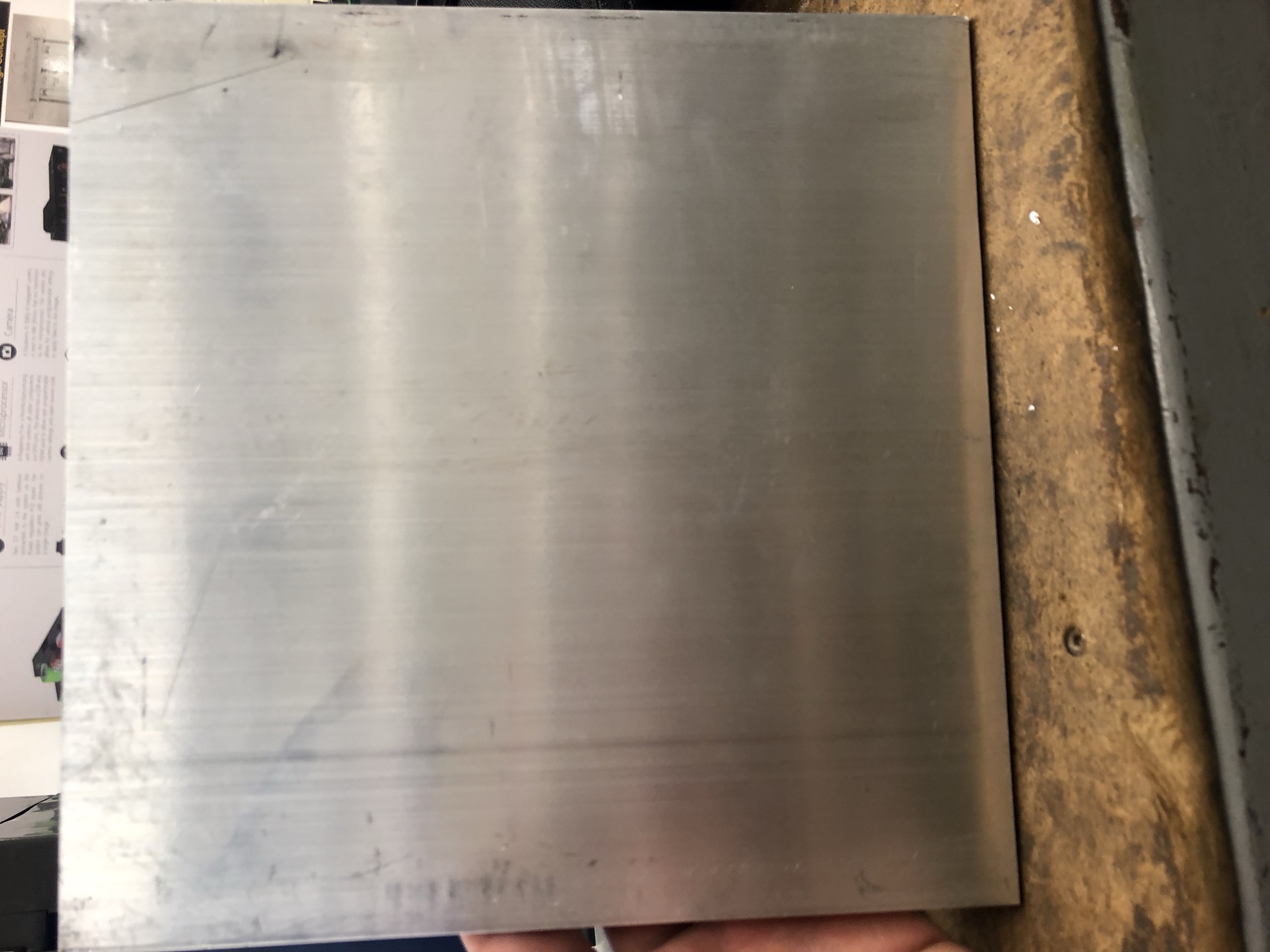

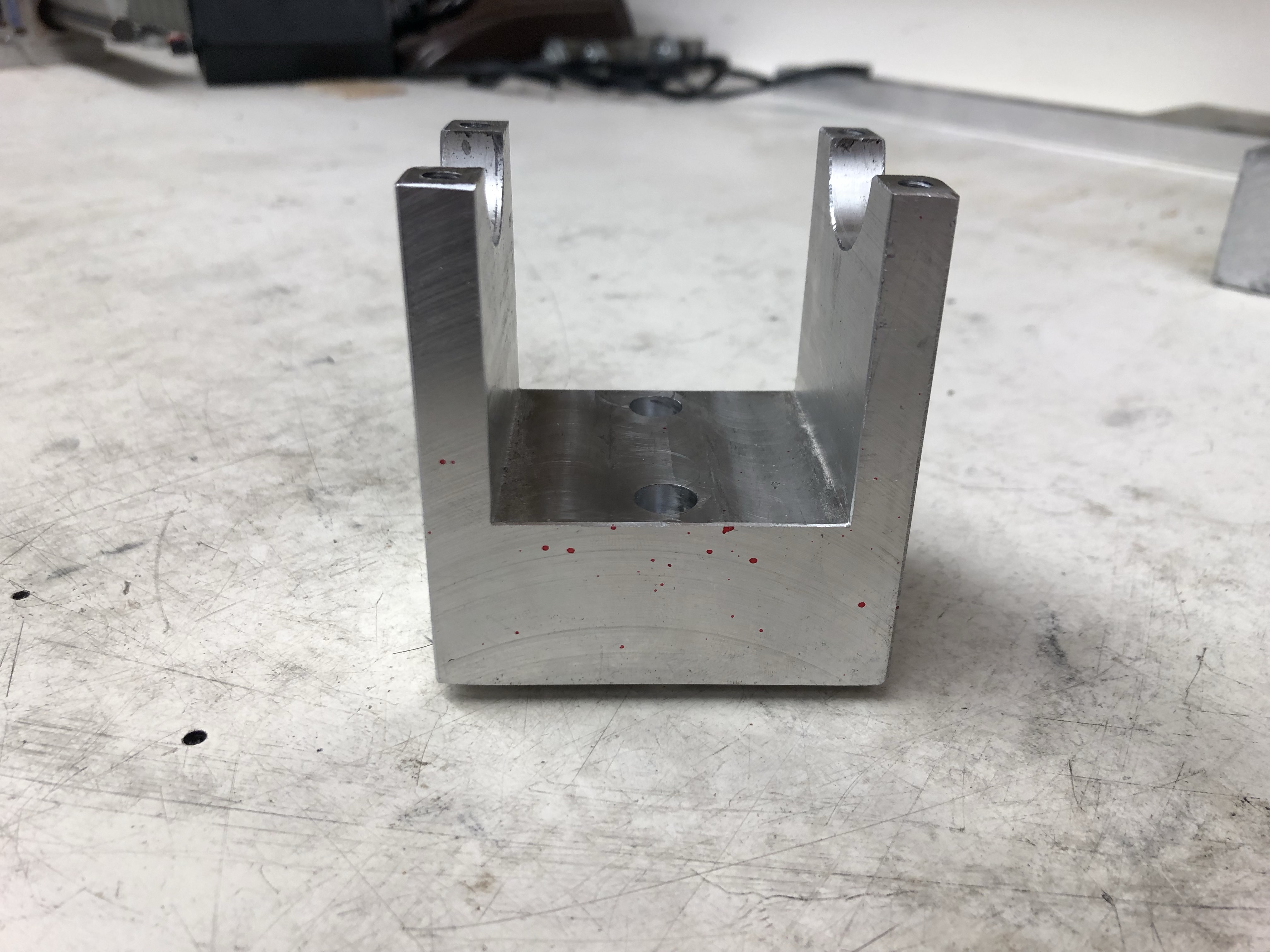

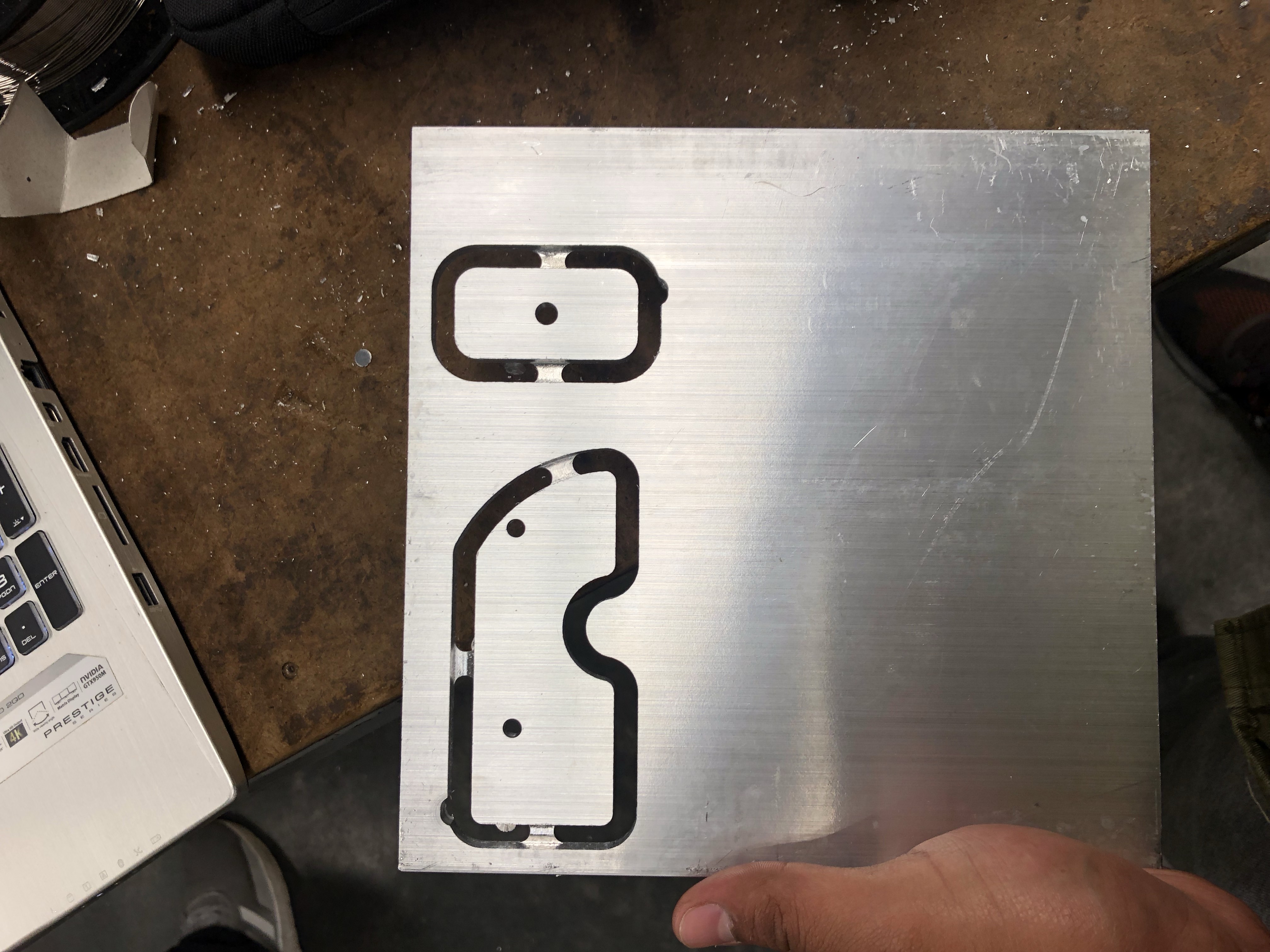

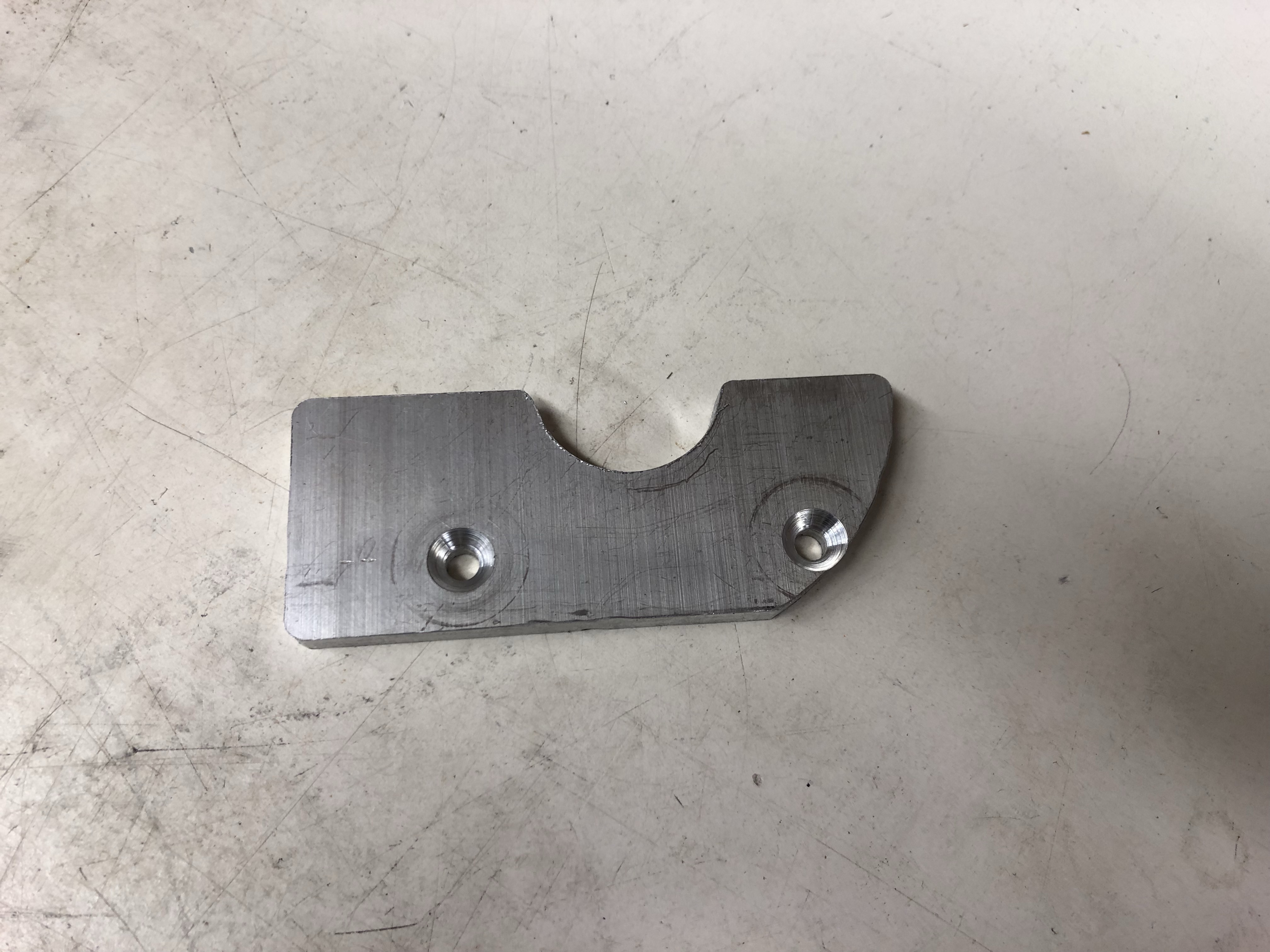

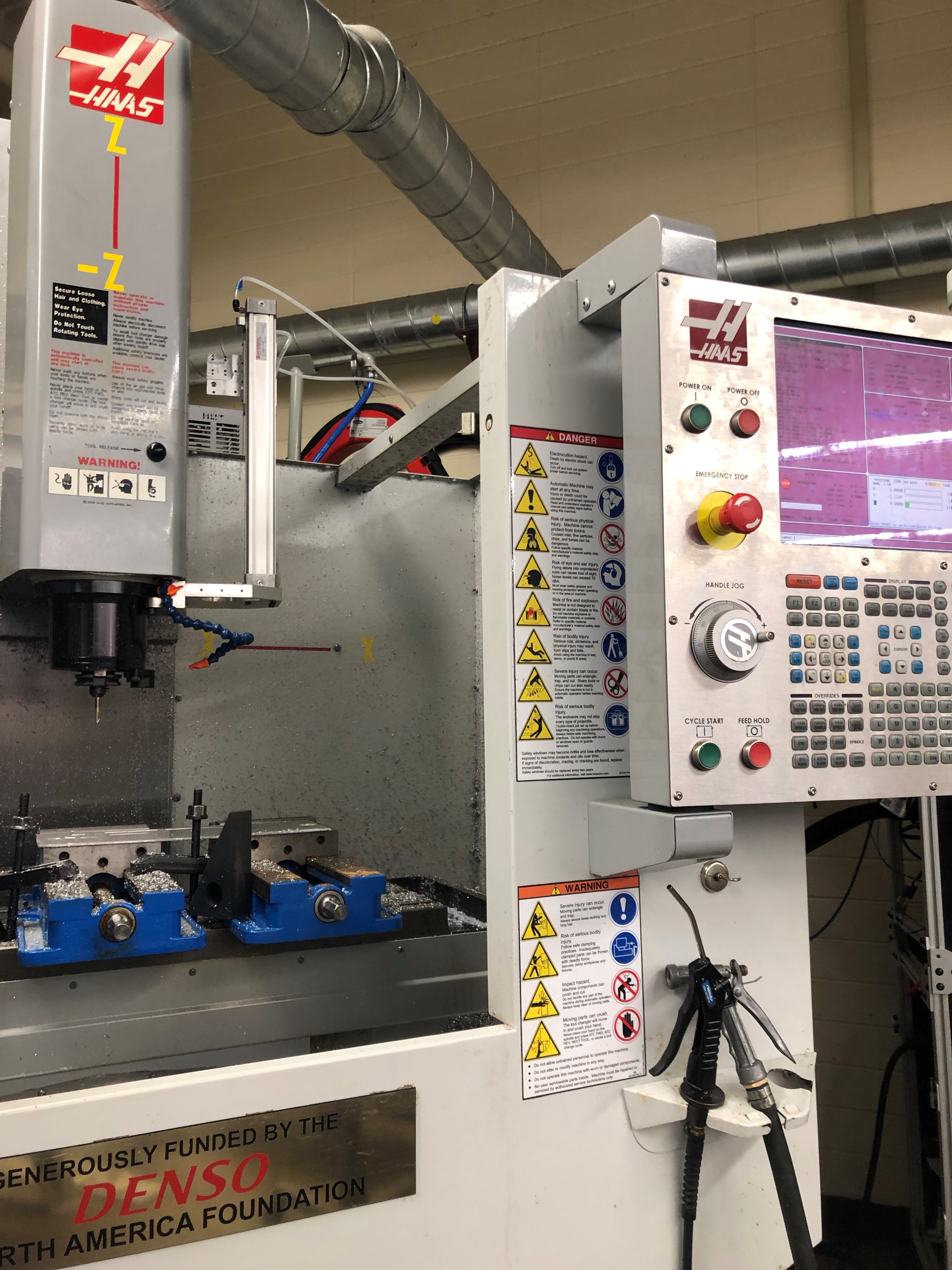

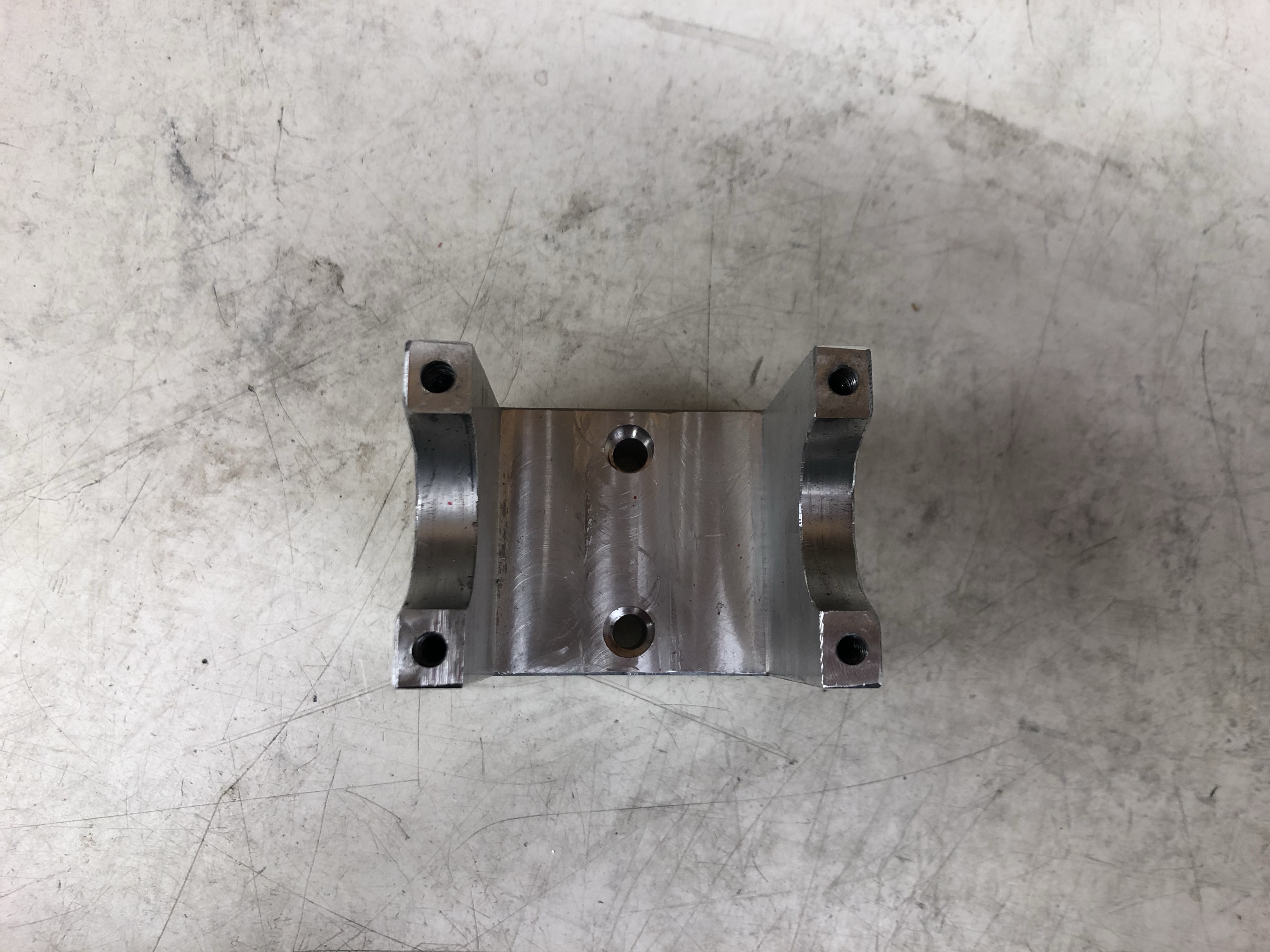

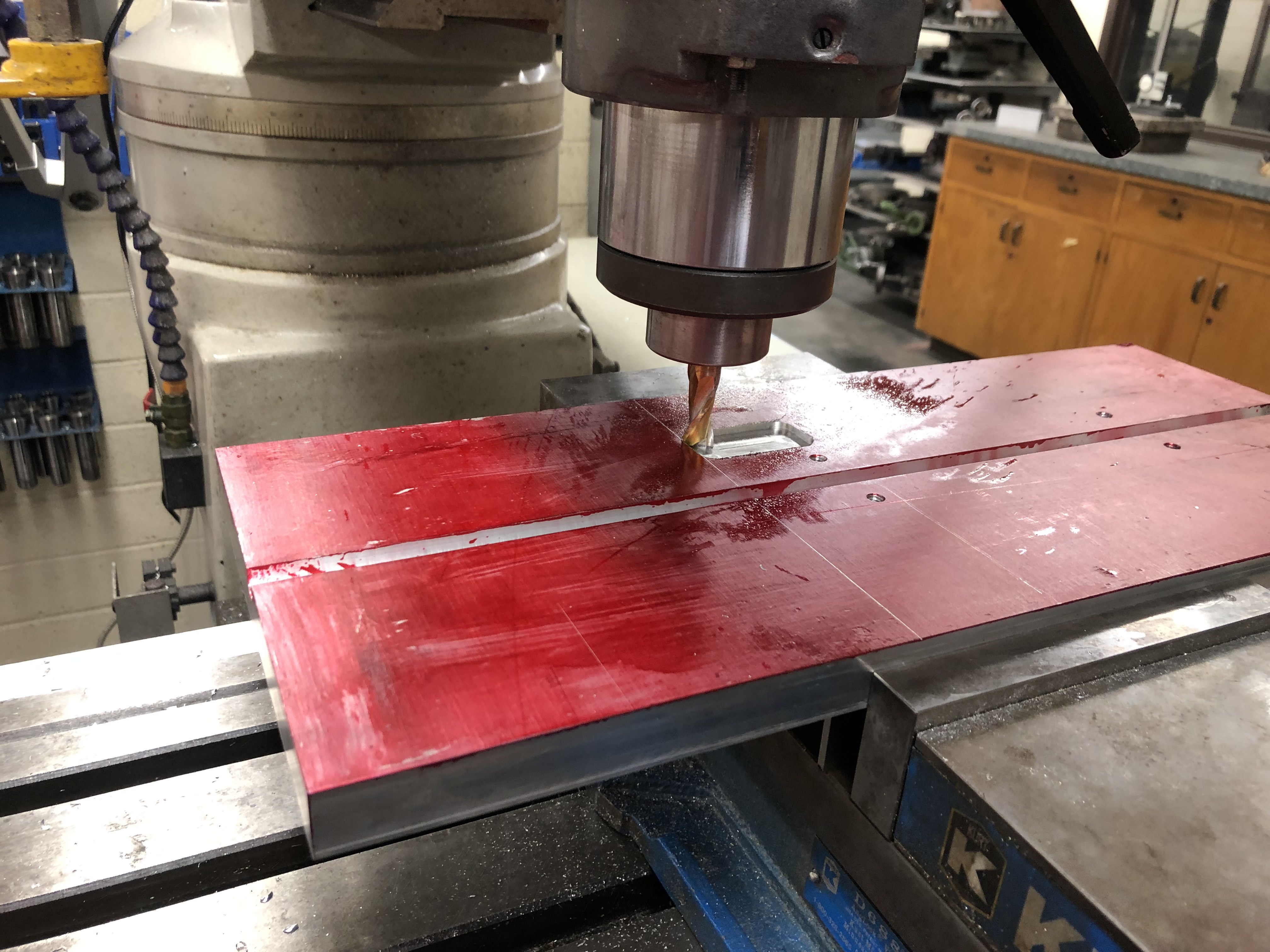

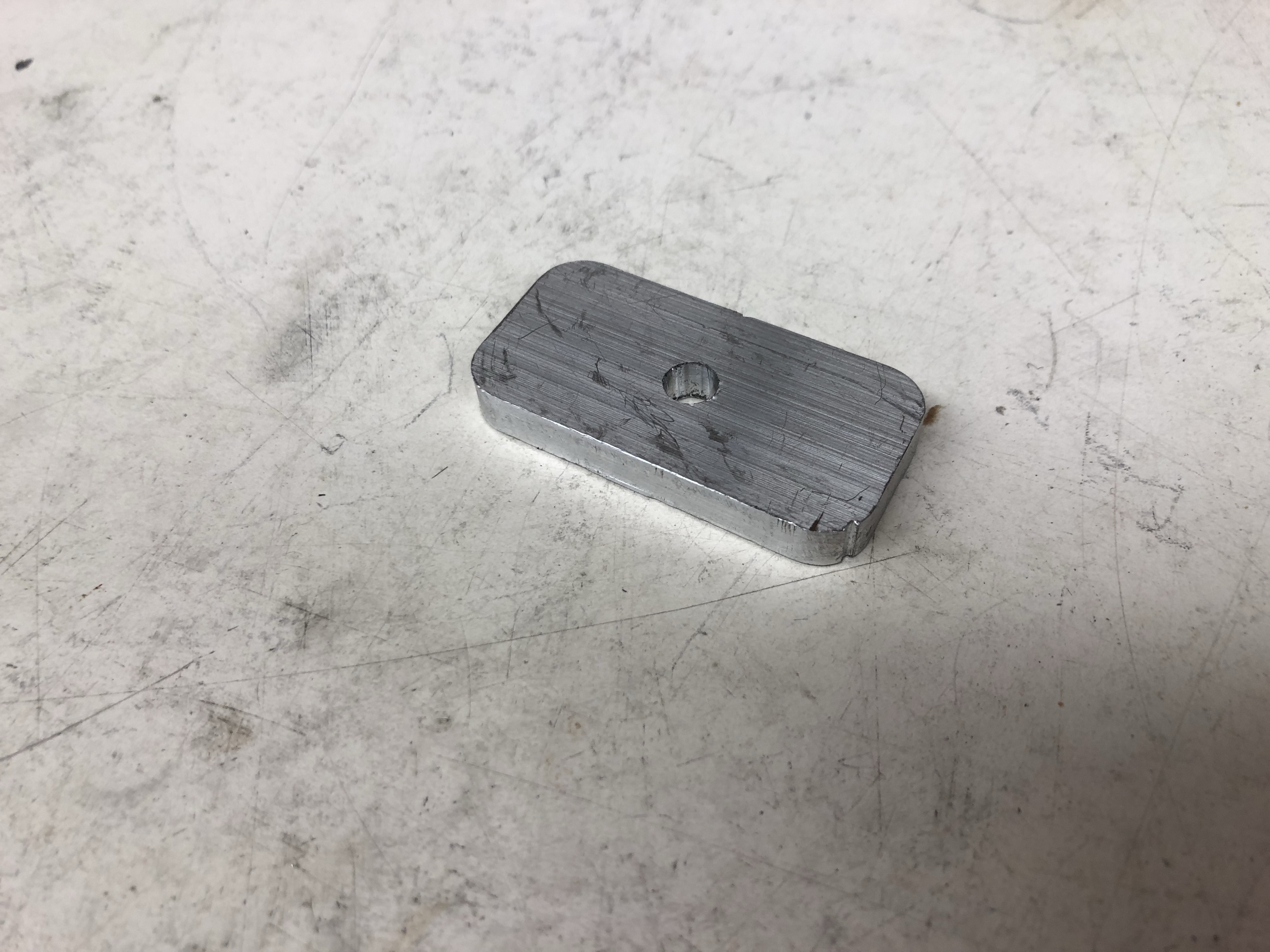

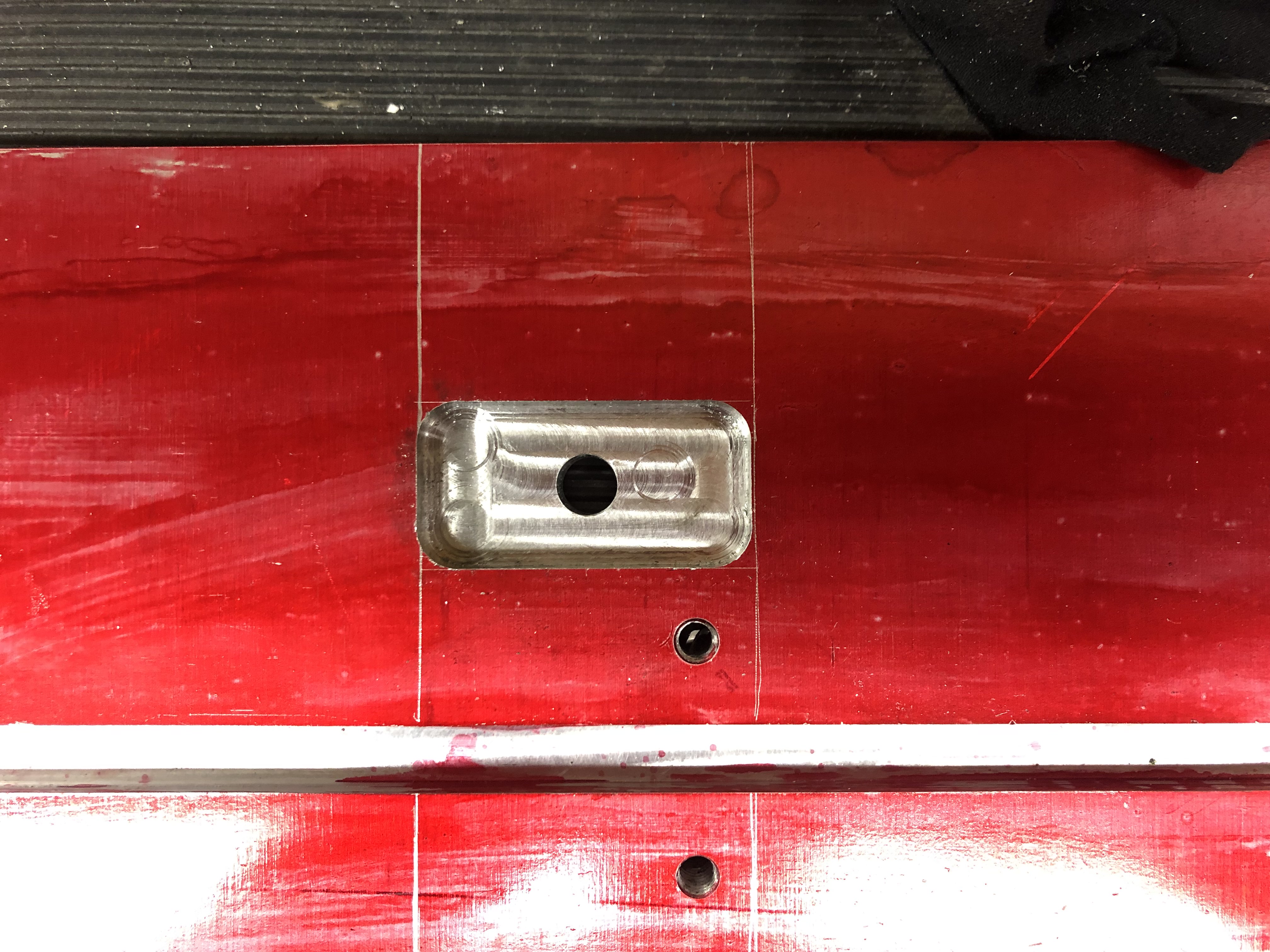

Manufacturing Process (Using a Milling Machine and a CNC Milling Machine)

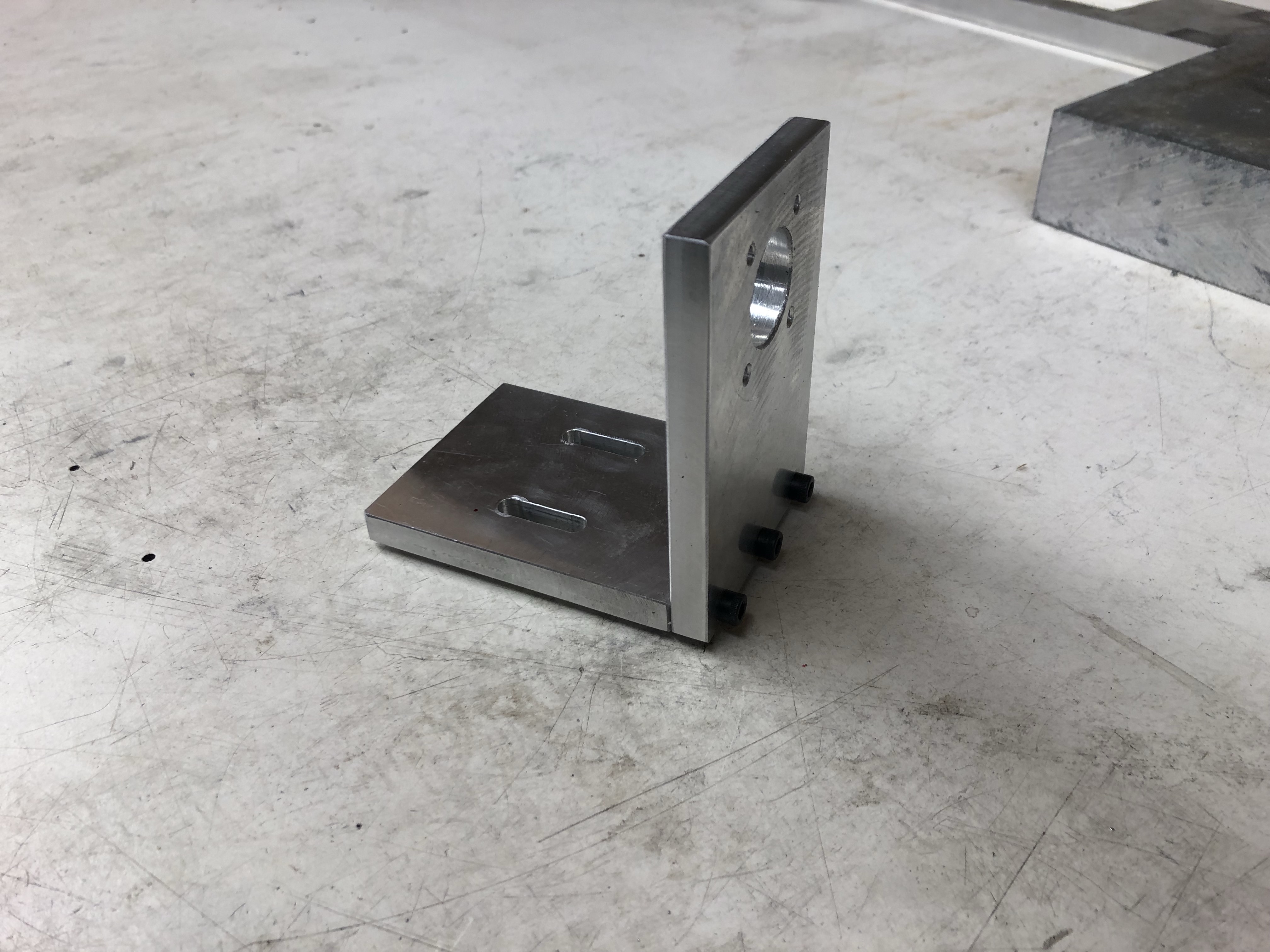

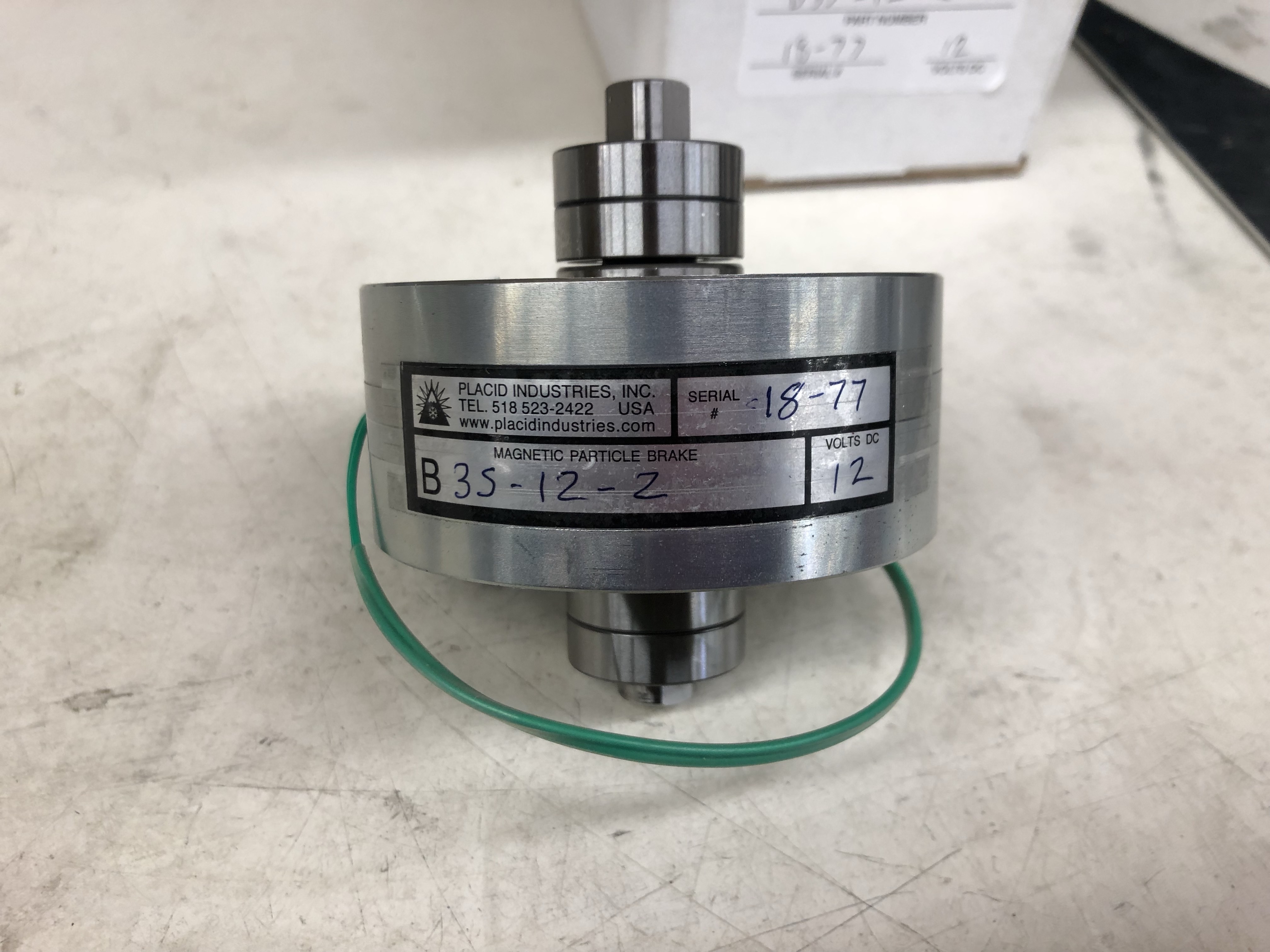

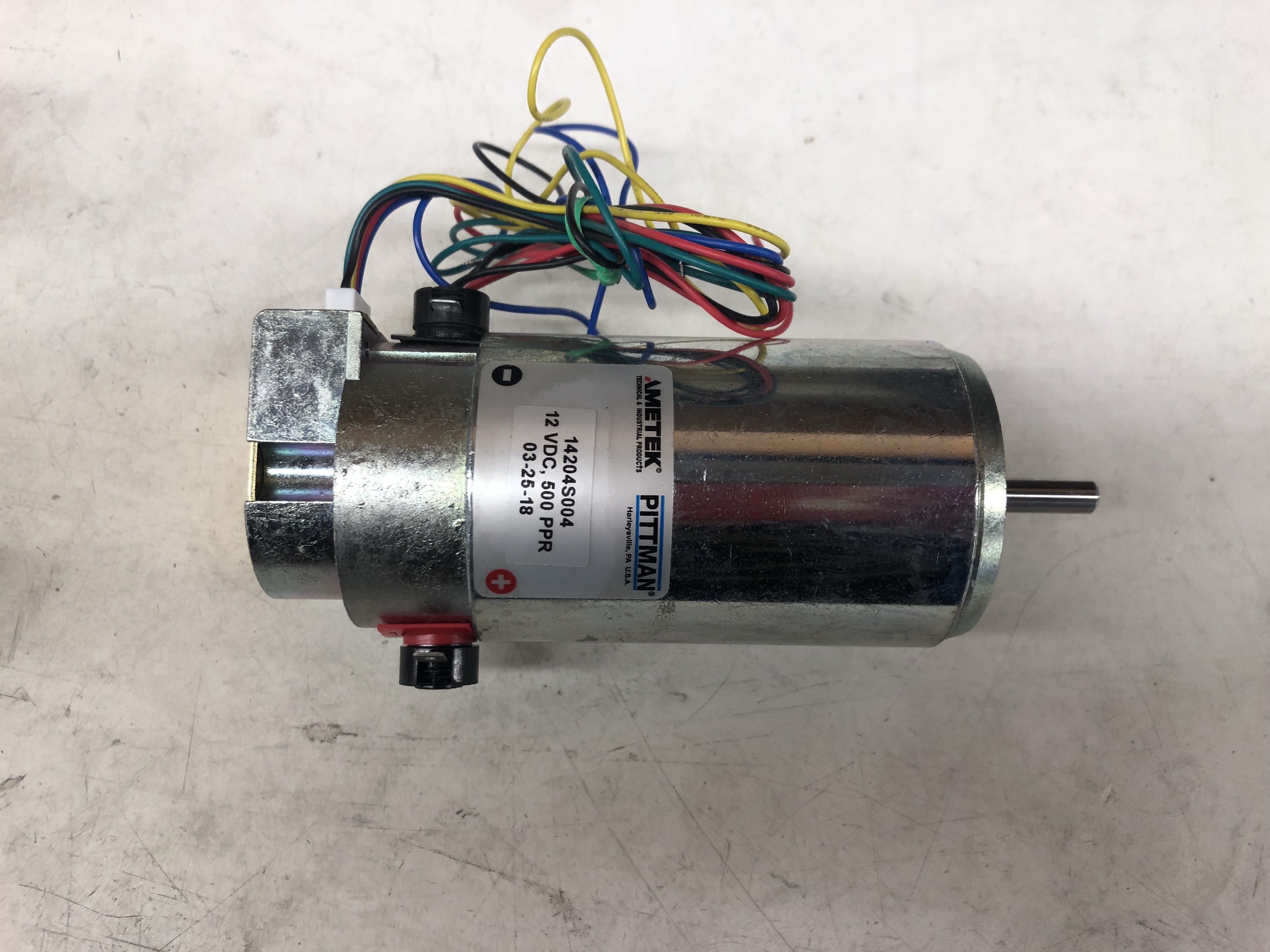

Particle Brake Electric Motor Load Cell

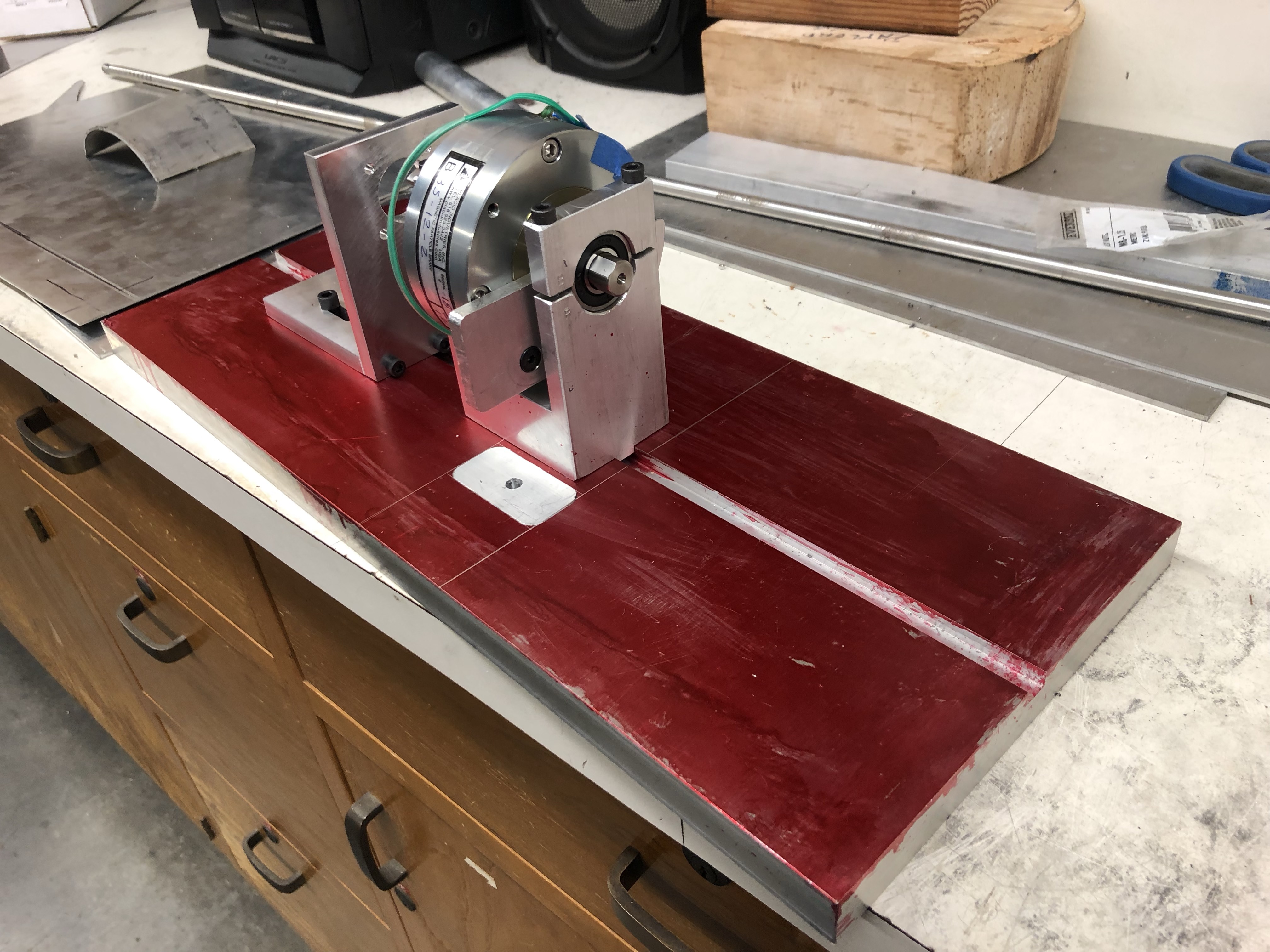

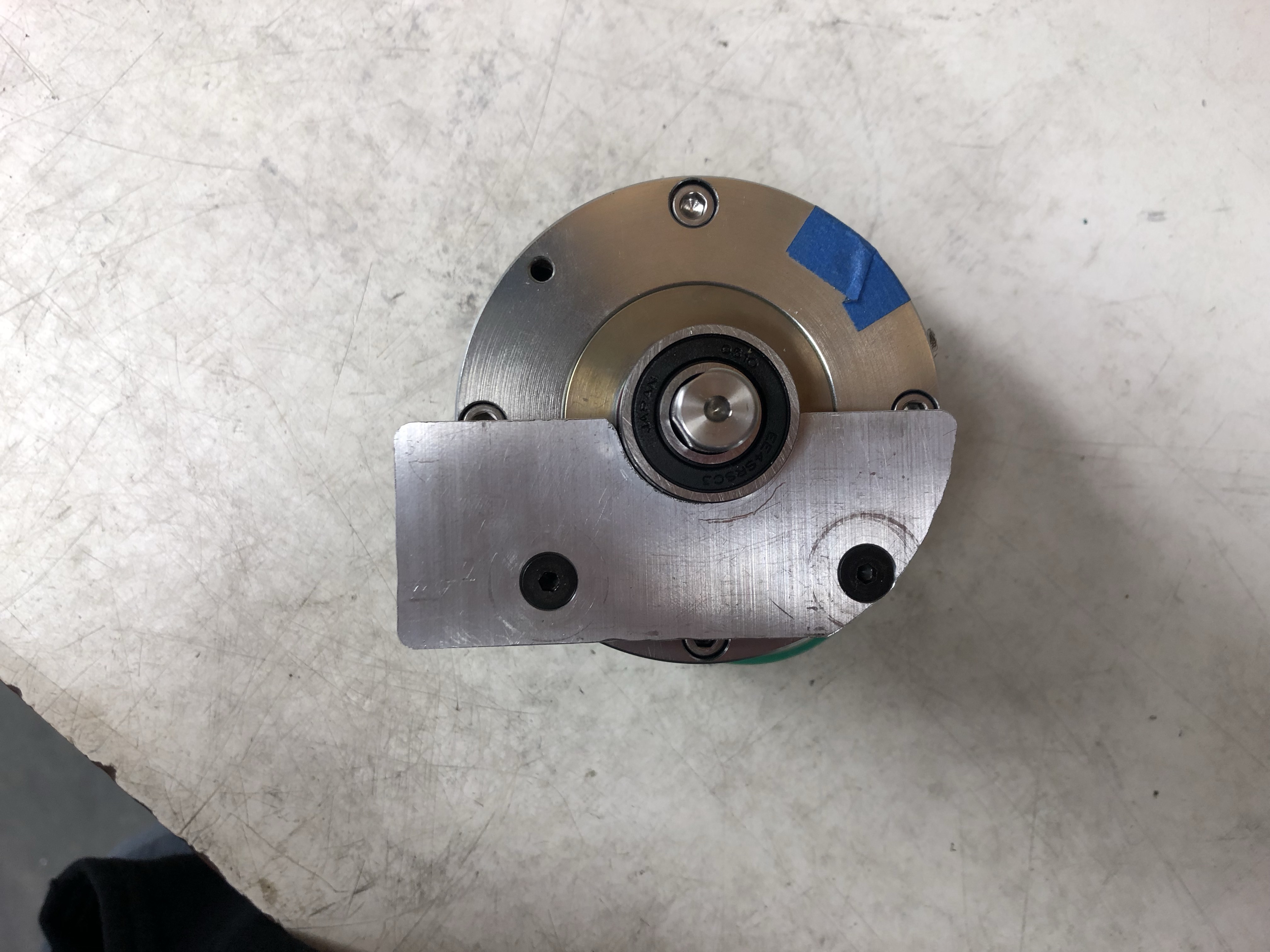

Assembly
